Maximum number of simultaneous effects :6 effects
User patch memories 100
Sampling frequency 44.1 kHz
A/D conversion 24-bit 128× oversampling
D/A conversion 24-bit 128× oversampling
Signal processing 32-bit
Frequency response: 20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (when 10kΩ load)

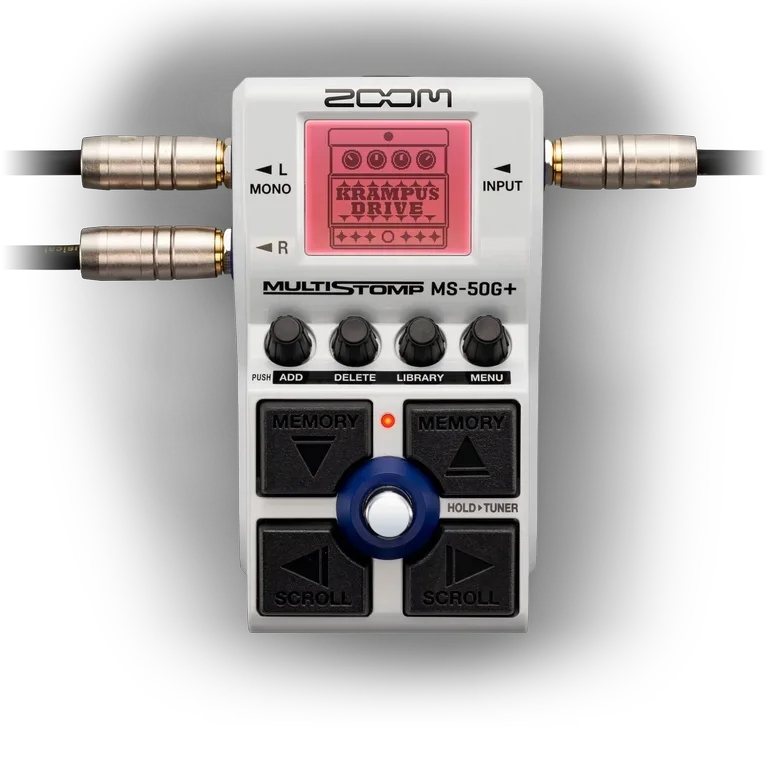

Display: 160 × 128 dot-matrix LCD

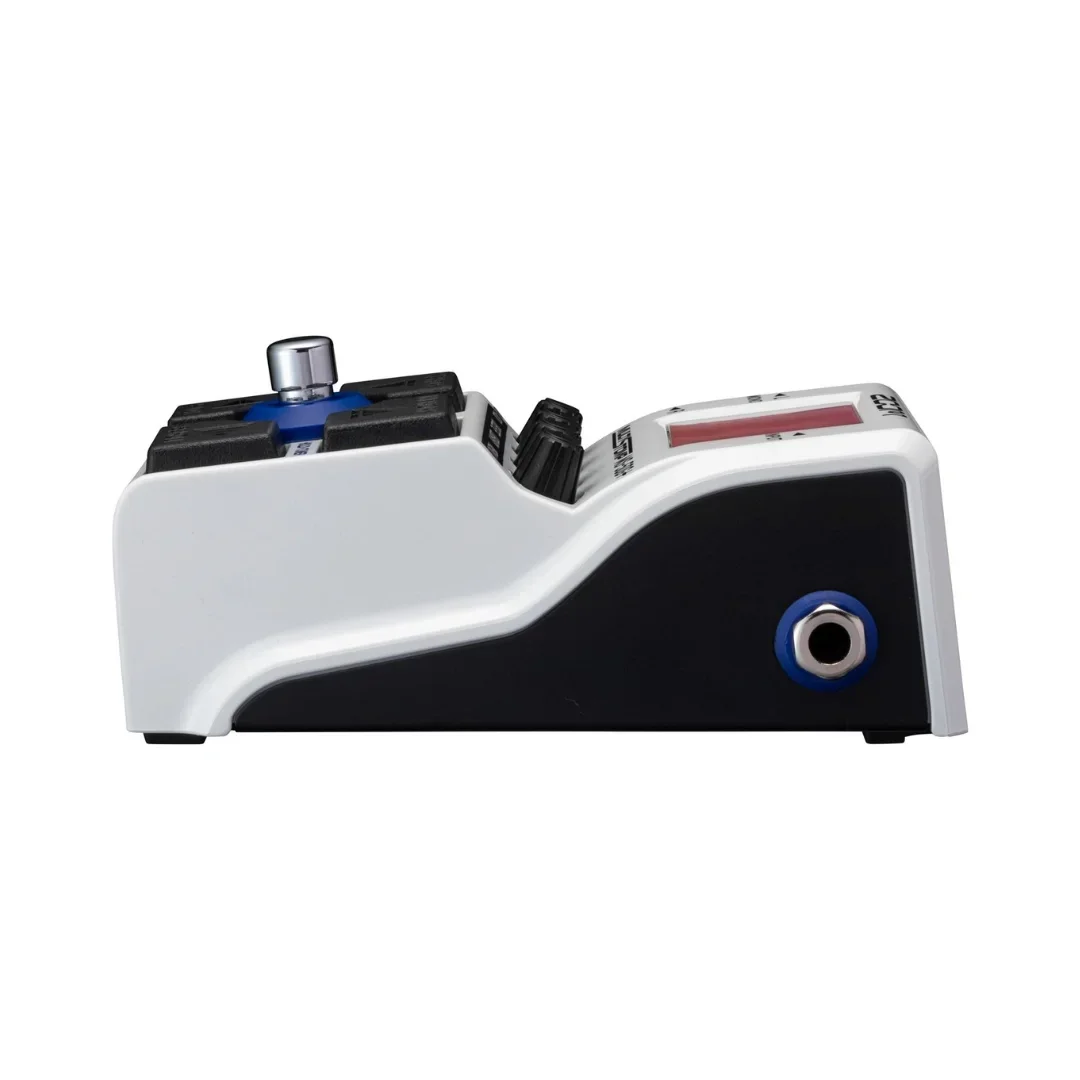

Input: Standard mono phone jack
Rated input level: −20 dBu
Input impedance (line): 470 kΩ

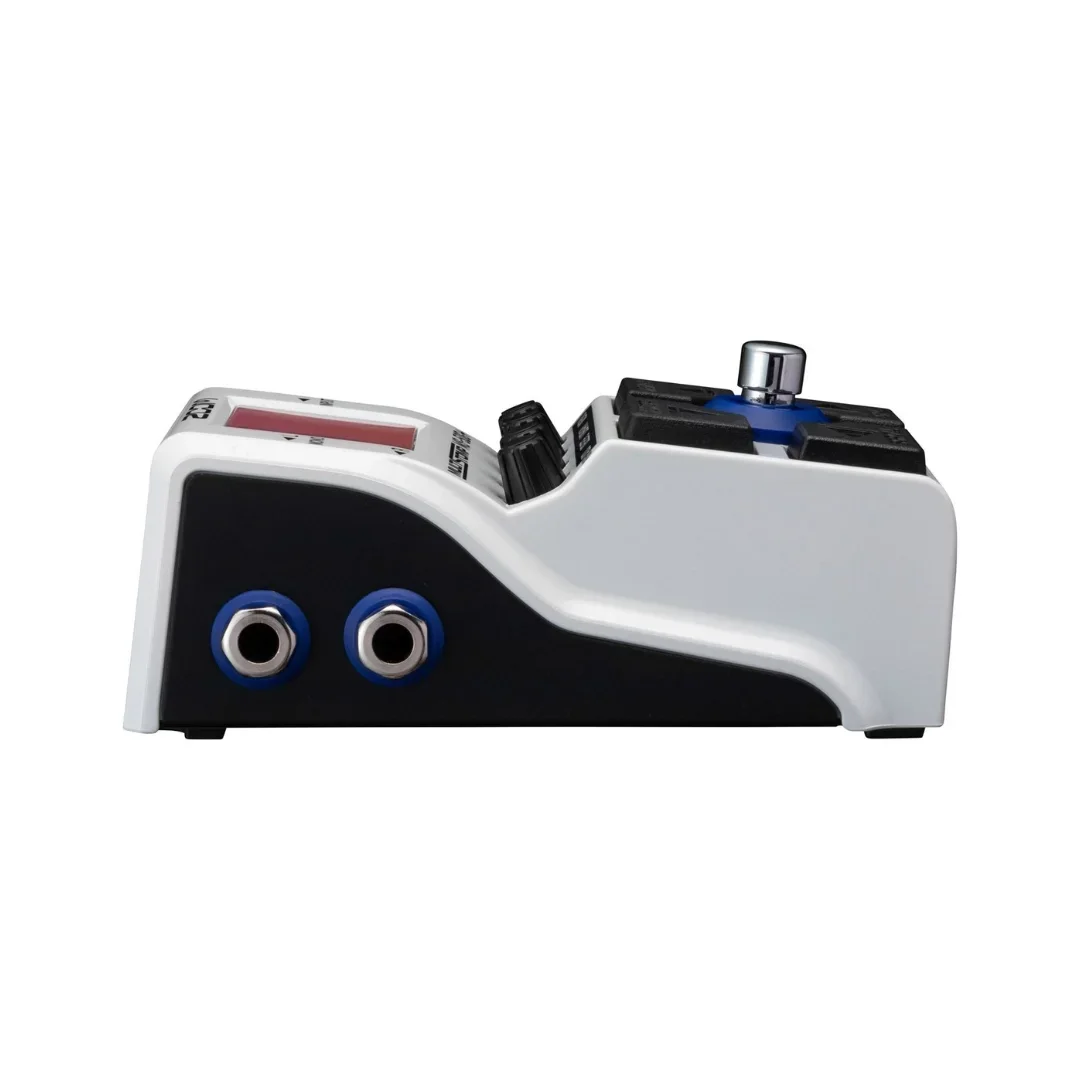

Outputs L/R Standard mono phone jacks
Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Input S/N 122 dB
Noise floor (residual noise) L/R –100 dBu

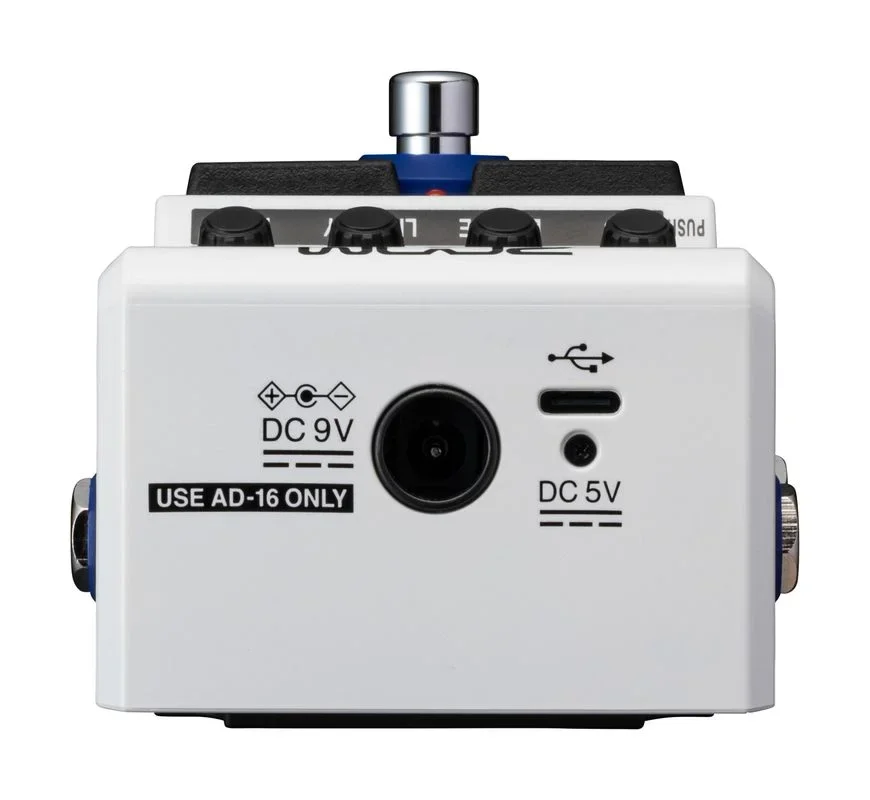

Power AC adapter 9V DC 500mA center negative (ZOOM AD-16)
2 AA batteries Alkaline, Lithium or rechargeable NiMH batteries
• USB bus power is supported.
Estimated operation times using batteries Alkaline batteries About 7 hours
NiMH batteries (1900 mAh) About 6.5 hours
Lithium batteries About 14 hours
• These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
USB Port USB 2.0 Type-C
Supported cable type: Type-C
Handy Guitar Lab USB1.1 Full Speed
• Use a USB cable that supports data transfer.
Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
Weight: 353 g (excluding batteries), 400 g (including batteries)
Note: 0 dBu = 0.775 V
