MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS 5
USER PATCH MEMORIES 300
A/D CONVERSION 24-bit 128× oversampling
D/A CONVERSION 24-bit 128× oversampling
SIGNAL PROCESSING 32-bit

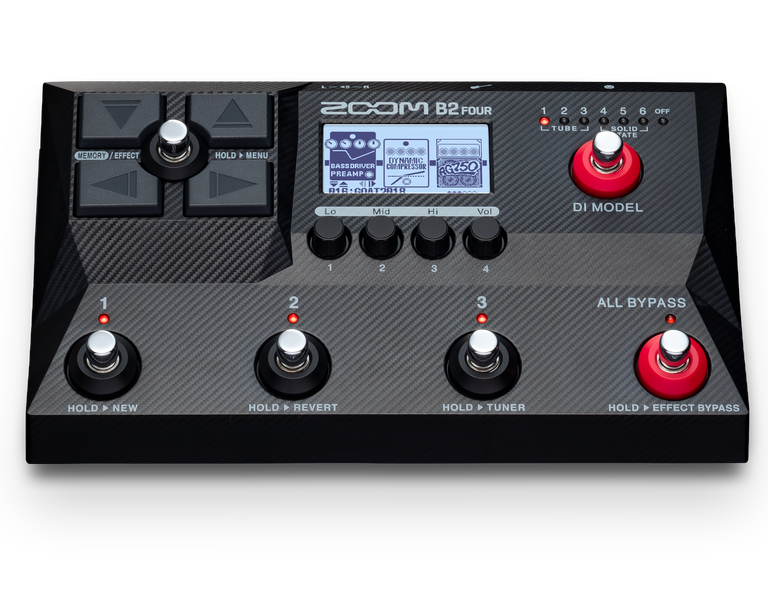

DISPLAY 256×128 dot-matrix LCD

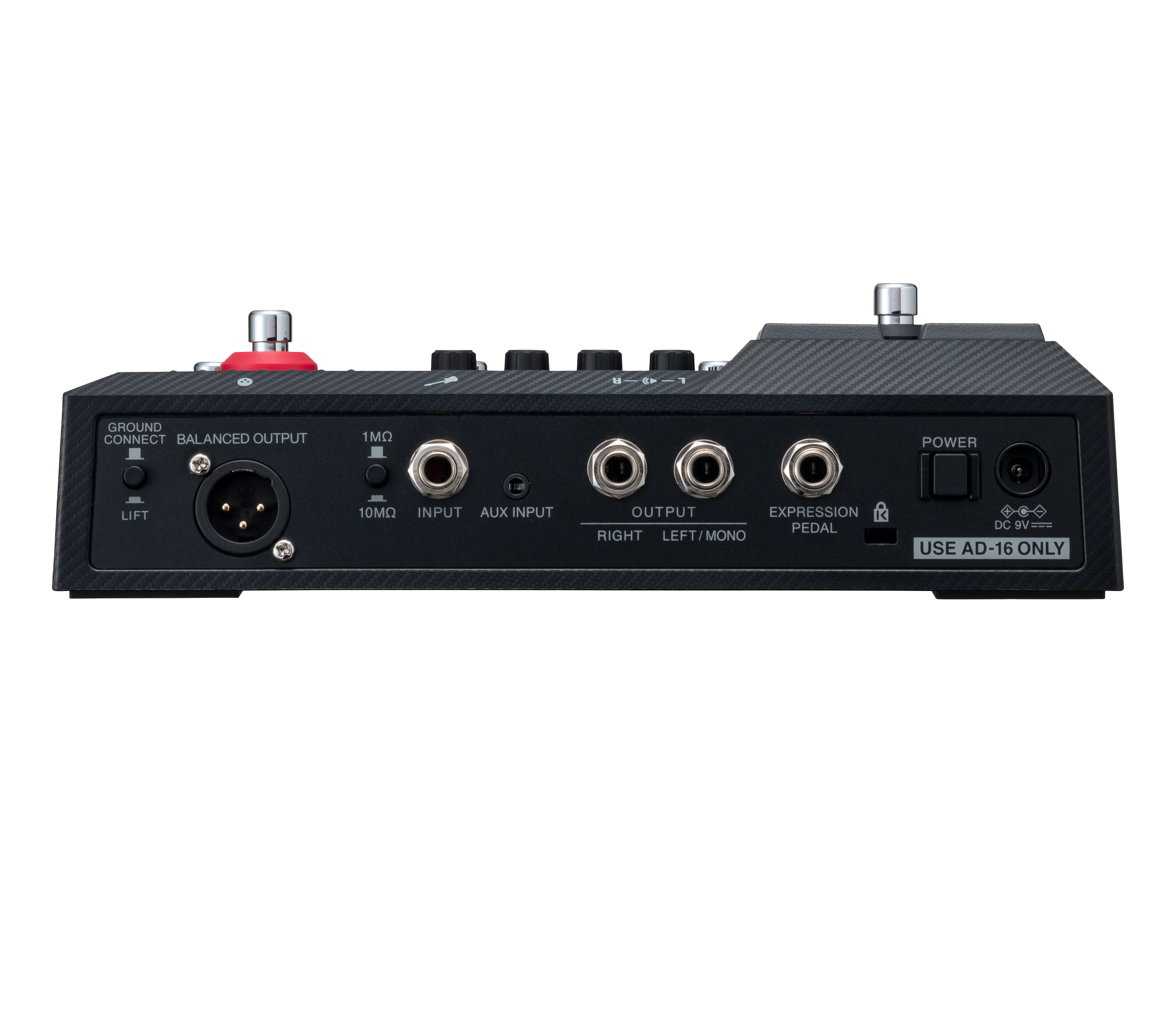

Inputs
INPUT Standard mono phone jack Rated input level: −20 dBu
Input impedance (line): 1 or 10 MΩ (switchable)
AUX INPUT Stereo mini jack Rated input level: −10 dBu
Input impedance (line): 10 kΩ
Outputs
LEFT/RIGHT Standard mono phone jacks Maximum output level: +11.4 dBu (when output impedance 10 kΩ or higher)
BALANCED OUTPUT XLR jack Impedance: 100 Ω (HOT-GND, COLD-GND)/200 Ω (HOT-COLD) GND LIFT (switchable)
PHONES Stereo mini jack Maximum output power: 33 mW + 33 mW (into 32Ω load)
INPUT S/N 124 dB
Noise floor (residual noise)
LEFT/RIGHT –96.0 dBu
BALANCED OUTPUT –100.0 dBu
PHONES –96.0 dBu
CONTROL INPUT FP02M input
POWER AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
USB USB 2.0 Type-C port (use cable that supports Type-C) HandyGuitar Lab: USB 1.1 Full Speed Audio interface: USB 2.0 Full Speed, 32-bit, 2-in/2-out • Use a USB cable that supports data transfer. USB bus power is supported.
DIMENSIONS 146 mm (D) × 249 mm (W) × 72 mm (H)
WEIGHT 906 g
NOTE: 0 DBU = 0.775 V
