Body Material: Poplar
Body Finish: Gloss

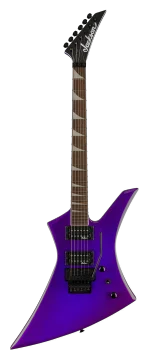

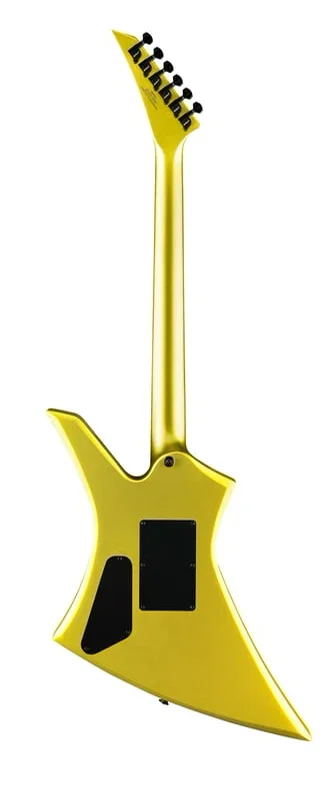

Body Shape: Kelly™

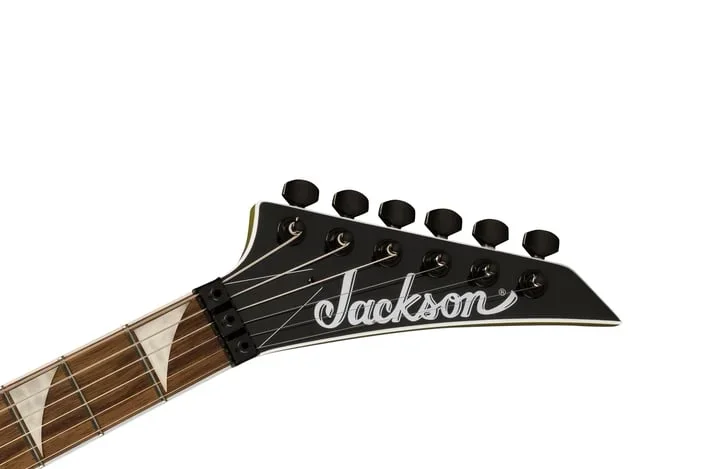

Neck
Number of Strings: 6
Neck Material: Maple
Neck Construction: Neck-Through-Body with Graphite Reinforcement and Scarf Joint
Neck Binding: White
Neck Finish: Gloss Color Matched
Scale Length: 25.5" (64.77 cm)
Fingerboard Material: Laurel
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Number of Frets: 24
Fret Size: Jumbo
Nut Material: Floyd Rose® Special Locking
Nut Width: 1.6875" (42.86 mm)
Position Inlays: Pearloid Sharkfin
Side Dots: Black
Truss Rod: Dual-Action Head Adjust
Truss Rod Nut: Truss Rod Adjustment at Nut

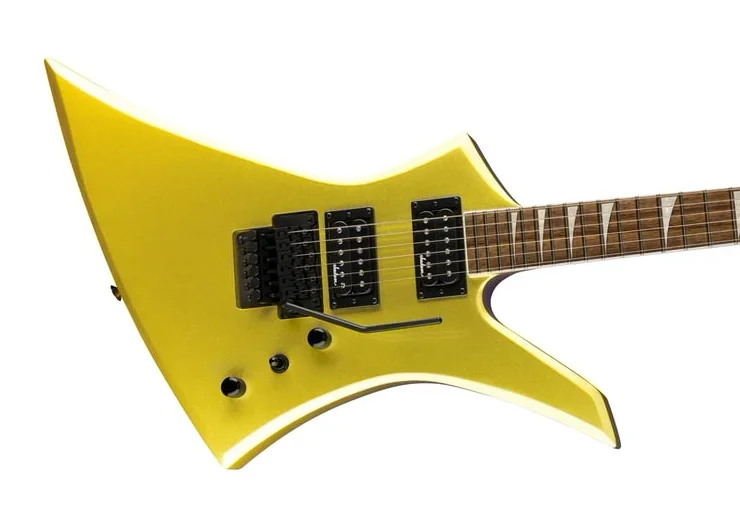

Electronics
Bridge Pickup: Jackson® High-Output Humbucking
Neck Pickup: Jackson® High-Output Humbucking
Controls: Volume, Tone
Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Configuration: HH
Hardware
Bridge: Floyd Rose® Special Double-Locking Tremolo (Recessed)
Hardware Finish: Black
Tuning Machines: Jackson® Sealed Die-Cast
Control Knobs: Dome-Style
Switch Tip: Black
