Model Number: 5107920849
Series: Wolfgang® USA
Color: Ivory
Number of Strings: 6
Orientation: Right-Hand
BODY
Body Finish: Gloss Urethane
Body Shape: Wolfgang®
Body Material: Basswood
Body Binding: 5-Ply
ELECTRONICS
Bridge Pickup: Direct Mount EVH® Wolfgang® USA Humbucking
Neck Pickup: Direct Mount EVH® Wolfgang® USA Humbucking
Pickup Color: Zebra
Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
Pickup Switching: EVH® Reverse-Style 3-Position Switching: Position 1: Neck Pickup, Position 2: Neck and Bridge, Position 3: Bridge
Pickup Configuration: HH
NECK
Neck Material: Quartersawn Maple
Neck Construction: Bolt-On with Graphite Reinforcement
Neck Thickness: .805" at 3rd & .890" at 12th Fret
Neck Finish: Hand-Rubbed Satin Urethane
Neck Shape: Wolfgang® Backshape
Scale Length: 25.5" (64.77 cm)
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Ebony
Number of Frets: 22
Fret Size: Vintage Stainless Steel
Nut Material: Floyd Rose® R2 Locking
Nut Width: 1.625" (41.3 mm)
Position Inlays: Mother of Pearl Block
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
Truss Rod Wrench: 2.5 mm Hex
String Trees: Floyd Rose® Retainer Bar

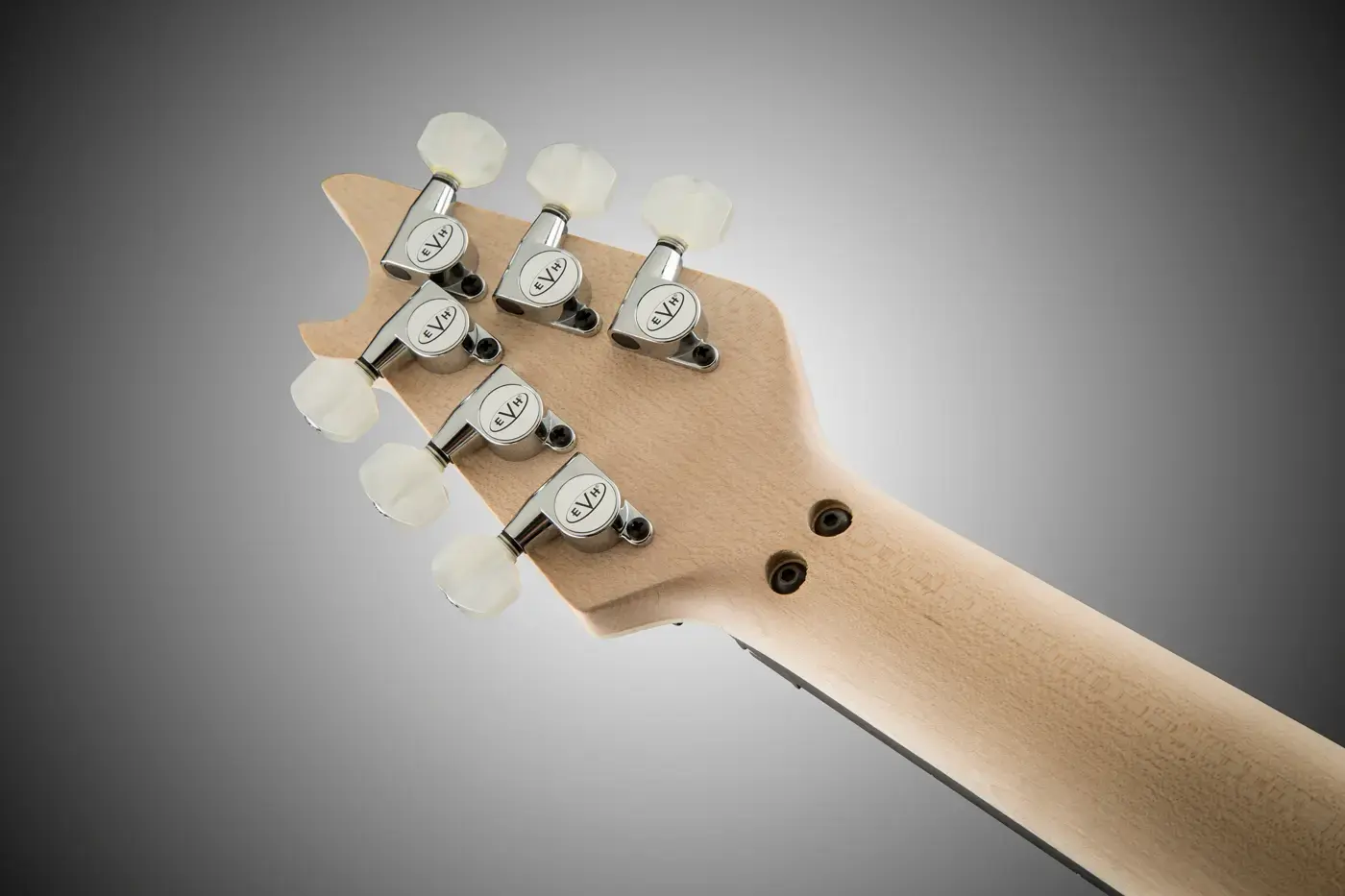

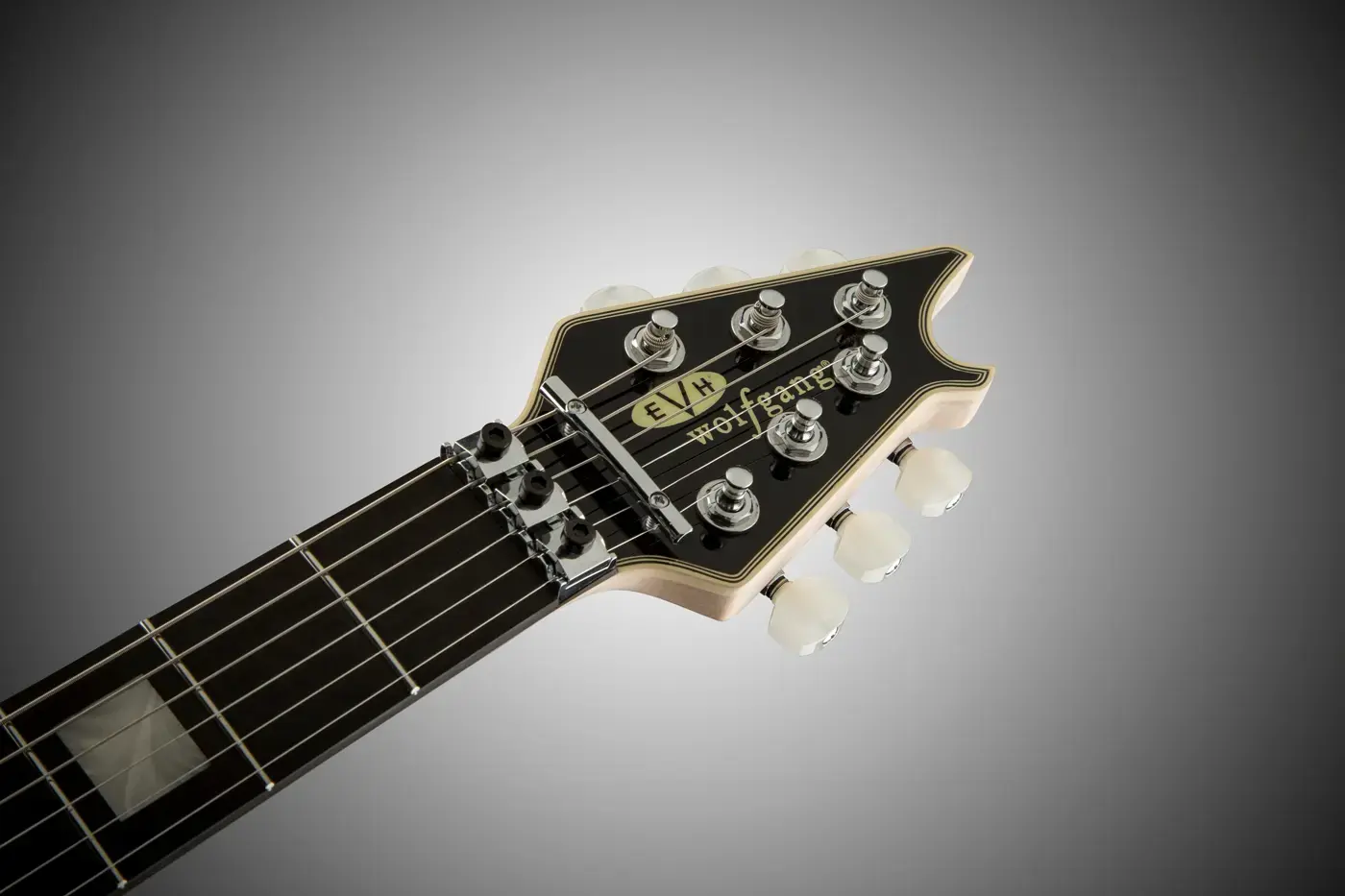

Headstock: EVH® Wolfgang®
HARDWARE
Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Hardware Finish: Black
Tremolo Arm: Floyd Rose® 1000 Series Locking
Tremolo Block: Brass
Tuning Machines: EVH®-Branded Gotoh®
Control Knobs: Black Knurled with White Indicator
Switch Tip: Black
MISCELLANEOUS
Strings: VH® Nickel Plated Steel (.009-.042 Gauges)
Strap Buttons: Oversized
