Series: 5150® Iconic®
Color: Black
Amplifier Type: Tube
Height: 21" (53.34 cm)
Width: 22.5" (57.15 cm)
Depth: 11.25" (28.57 cm)
Weight: 53 lbs. (24 kg)
ELECTRONICS
Controls: Channel 1: Gain w/ Overdrive Switch; Channel 2 Gain w/ Burn Switch; Noise Gate Channel 2: Low, Mid, High EQ; Channel 1/ Channel 2 Volume, Master Boost, Global Reverb, Resonance, and Presence
Channels: Two - Clean/Overdrive and Lead/Burn
Voltage: 120V (Also Available in 100V, 110V, 220V, 230V, 240V)
Wattage: 40 Watts
Effects: Reverb
Effects Loop: 1/4" (Send/Return)
Inputs: One - 1/4"
Line Out: Two - (One XLR and One 1/4")
Speaker Jack: Two - 1/4" Parallel
Rectifier: Solid State
Total Impedance: 4, 8, or 16 ohms
Power Cable: IEC
CONSTRUCTION
Grill Cloth/Material: Black
Amplifier Covering: Black Textured Vinyl
Cabinet Material: MDF w/ Plywood Baffle
TUBES
Preamp Tubes: 2 x ECC83S
Power Tubes: 2 x 6L6
SPEAKERS
Speakers: One - 12" EVH® Celestion® Custom
Speaker Wattage: 40 Watts
HARDWARE
Control Knobs: Black Chicken-Head Style Pointer
Handle: Molded Plastic Strap with Black Powder Coated Caps

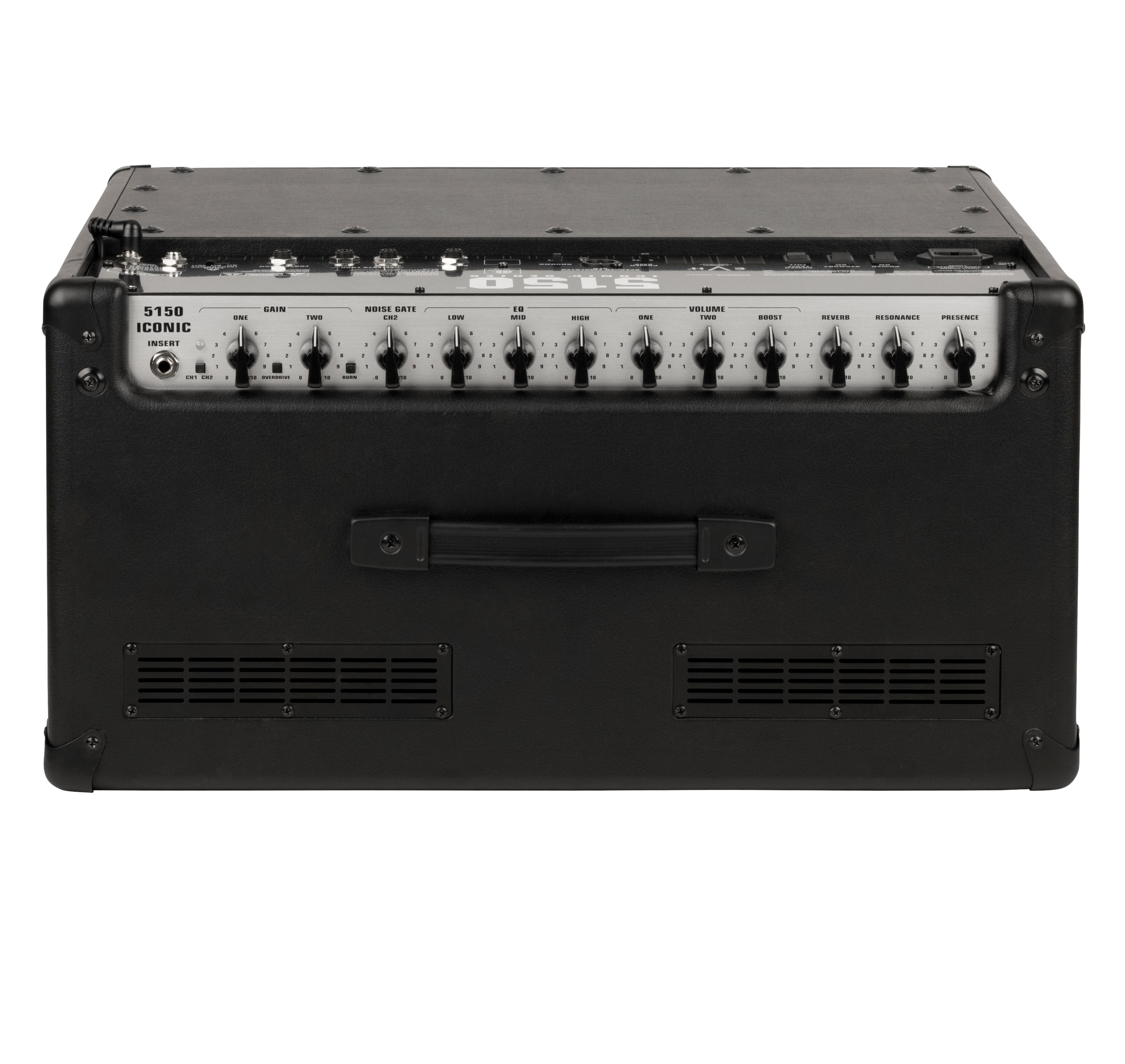

Control Panel: Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Noise Gate (Channel 2); Shared Low, Mid, High EQ; Channel 1/Channel 2 Volume; Master Boost; Global Reverb, Resonance and Presence
Front Panel: Brushed Aluminum
Effects: Reverb
1/4 Power Level Switch
ACCESSORIES
Footswitch: 2-Button Footswitch Included
Footswitch Connection Type: 1/4"
