Series: Pro-mod
Number of strings: 6
Orientation: Right hand
Bridge Pickup: Seymour Duncan® Custom Full shred™ SH-10B
Middle Pickup: Custom Seymour Duncan® Flat Strat® SSL-6 Single-Coil
Neck Pickup: Custom Seymour Duncan® Flat Strat® SSL-6 RWRP Single-Coil
Pickup color: Flat Parchment
Controls: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
Pickup Switching: 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup.
Pickup Configuration: HSS
Body Finish: Satin
Body Shape: Dinky™
Body Material: Ash
Bridge: Gotoh® Custom 510 Tremolo
Hardware Finish: Chrome
Tremolo Arm: Gotoh®
Tuning Machines: Charvel®-Branded Die-Cast Locking
Control knobs: Stratocaster®-Style Skirt
Switch Tip: Parchment
Neck Material: Caramelized Maple
Neck Construction: Bolt-On with Graphite Reinforcement
Neck Finish: Satin
Neck Shape: Speed Neck with Rolled Fingerboard Edges
Scale Legth: 25.5” (648mm)
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Caramelized Maple
Number of Frets: 24
Fret Size: Jumbo
Nut Material: Graph Tech® TUSQ® XL
Nut Width: 1.6875" (42.86 mm)
Position Inlays: 4mm Pearloid Dot
TrussRod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Trees: Fender® Standard String Guide

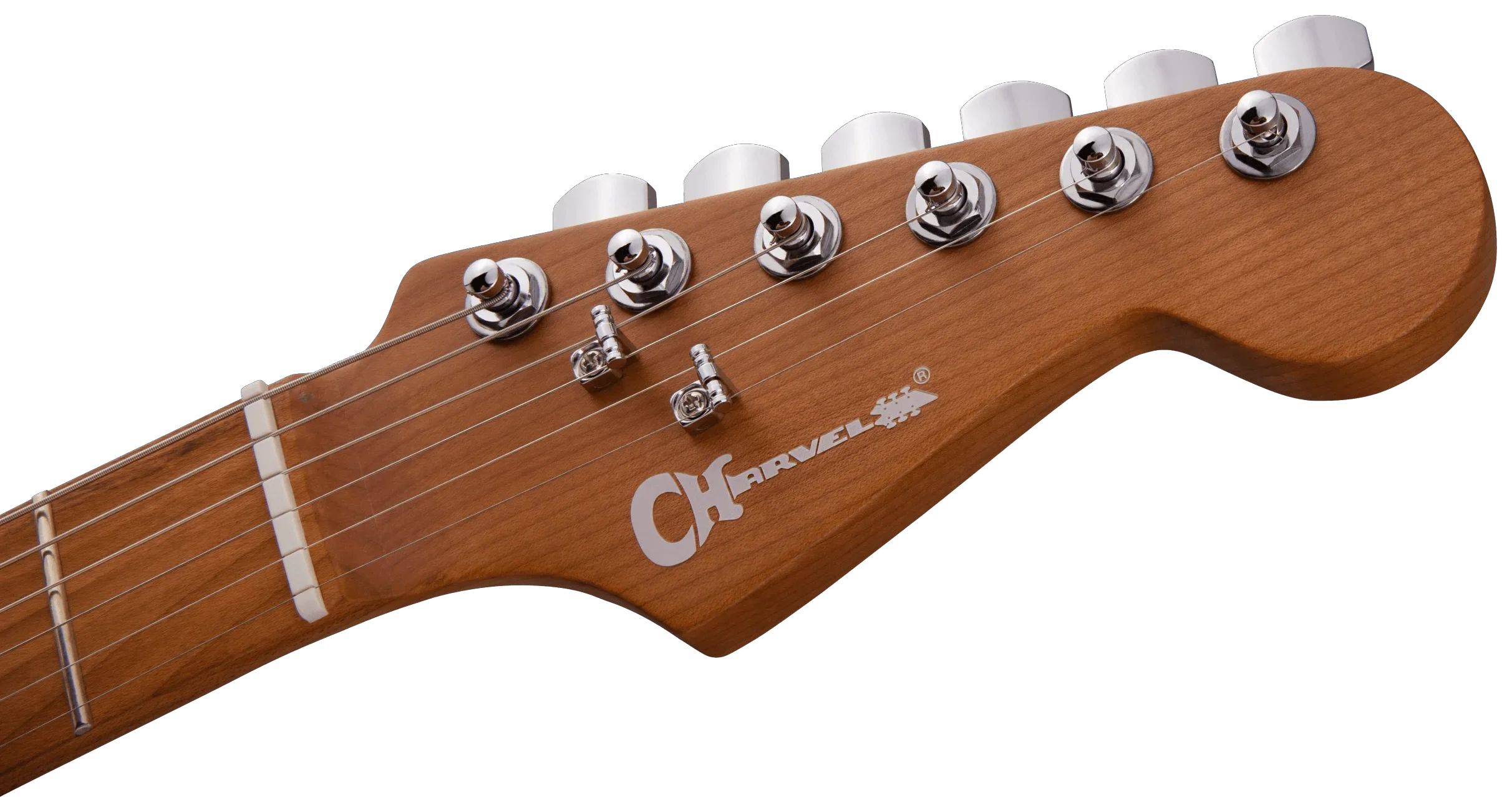

Headstock: Licensed Fender® Stratocaster®
Neck Plate: 4-Bolt Sculpted Heel
Strings: Nickel Plated Steel (.009-.042 Gauges)
Strap Buttons: Standard
Other Features: Luminlay® Side Dots
