Model Number 2969026527
Series Pro-Mod
Color Electric Blue
Number of Strings 6
Orientation Right-Hand
ELECTRONICS
Bridge Pickup Seymour Duncan® Custom Hot Rails® Strat® SHR-1B
Middle Pickup Custom Seymour Duncan® Flat Strat® SSL-6 Single-Coil
Neck Pickup Custom Seymour Duncan® Flat Strat® SSL-6 RWRP Single-Coil
Pickup Color Flat Parchment
Controls Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
Pickup Switching 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup
Pickup Configuration SSS
BODY
Body Finish Satin
Body Shape Dinky®
Body Material Alder
HARDWARE
Bridge Gotoh® Custom 510 Tremolo
Hardware Finish Chrome
Tremolo Arm Gotoh®

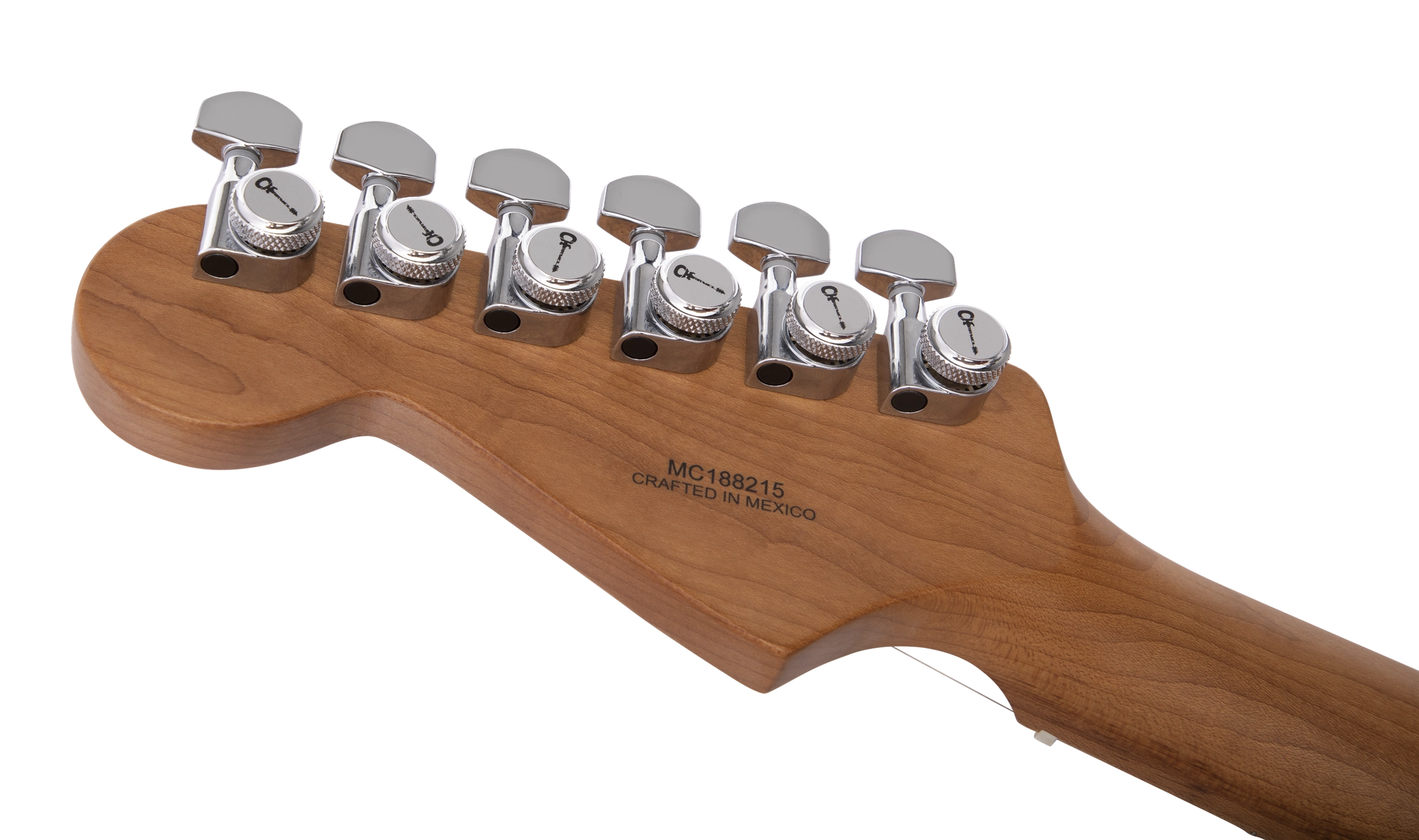

Tuning Machines Charvel®-Branded Die-Cast Locking
Pickguard None
Control Knobs Stratocaster®-Style Skirt
Switch Tip Parchment
Saddle Height Wrench Yes
NECK
Neck Material Caramelized Maple
Neck Construction Bolt-On with Graphite Reinforcement
Neck Finish Hand-Rubbed Satin Urethane
Neck Shape Speed Neck with Rolled Fingerboard Edges
Neck Binding None - Rolled Fingerboard Edges
Scale Length 25.5" (64.77 cm)
Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material Caramelized Maple
Number of Frets 22
Fret Size Jumbo
Nut Material Graph Tech TUSQ XL
Nut Width 1.6875" (42.86 mm)
Position Inlays 4mm Pearloid Dot
Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
String Trees Fender® Standard String Guide

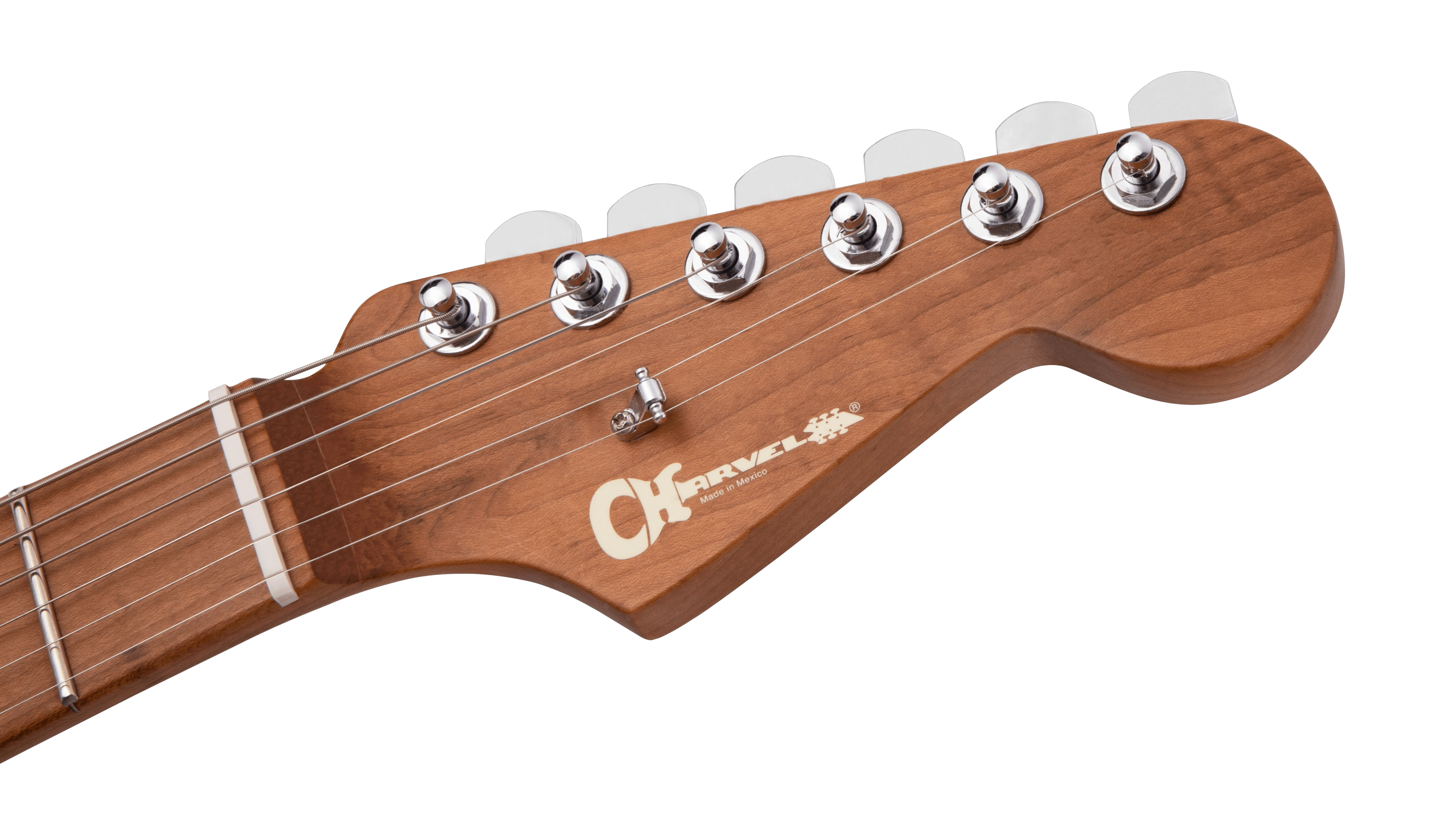

Headstock Licensed Fender® Stratocaster®
Neck Plate None - 4-Bolt Sculpted Heel
