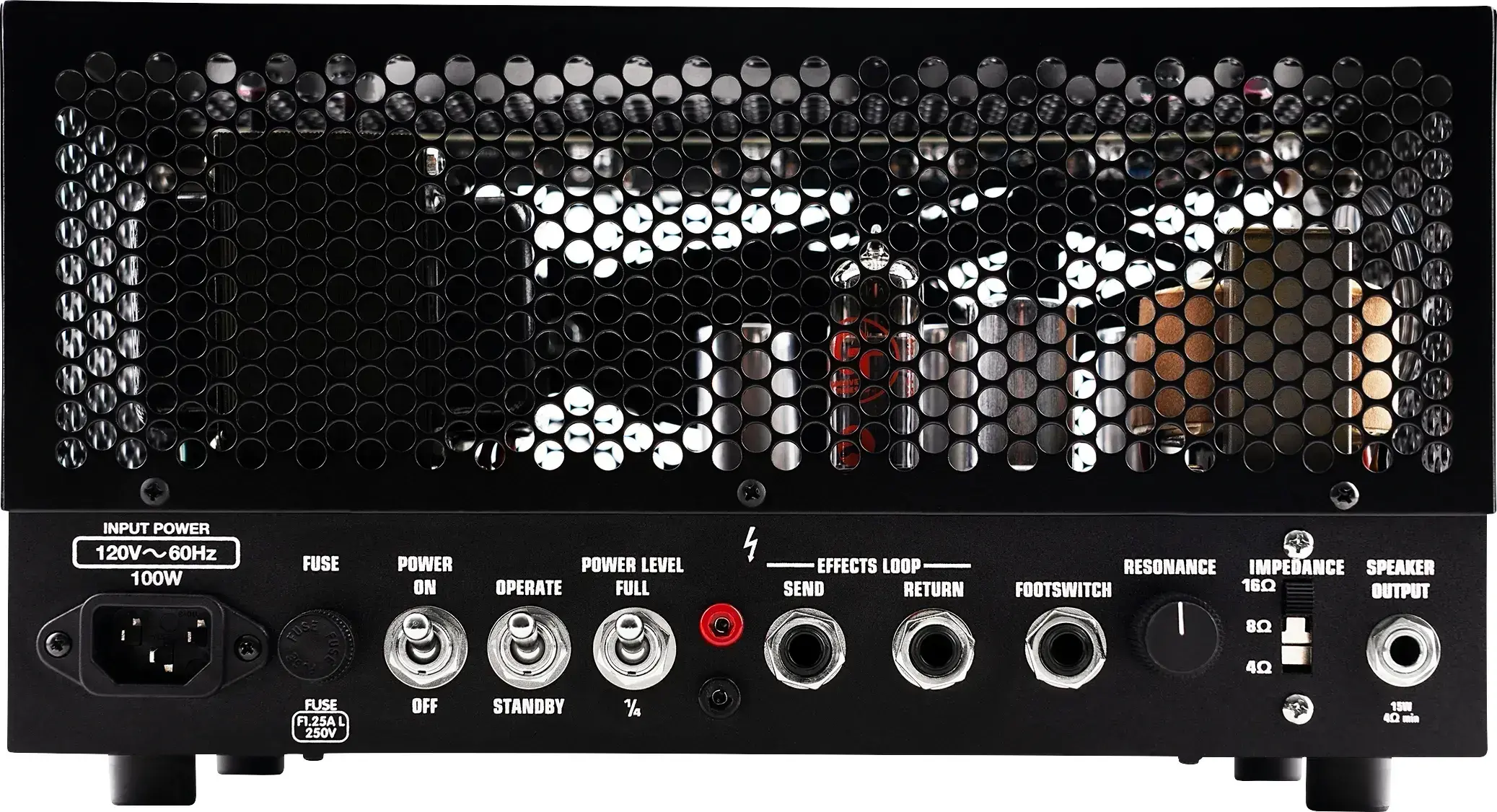

Series: EVH® 5150III® Heads
Color: Stealth Black
Amplifier Type: Tube
Height: 7" (17.8 cm)
Width: 12.5" (31.2 cm)
Depth: 6" (15.3 cm)
Weight: 15 lbs (6.80 kg)
ELECTRONICS
Controls: Dual Gain, Low, Mid, High, Dual Volume, Presence, Resonance
Channels: Two: (Green) Clean/(Red) Full Burn
Voltage: 120V (Also Available in 100V, 110V, 220V, 230V, 240V)
Wattage: 15 Watts

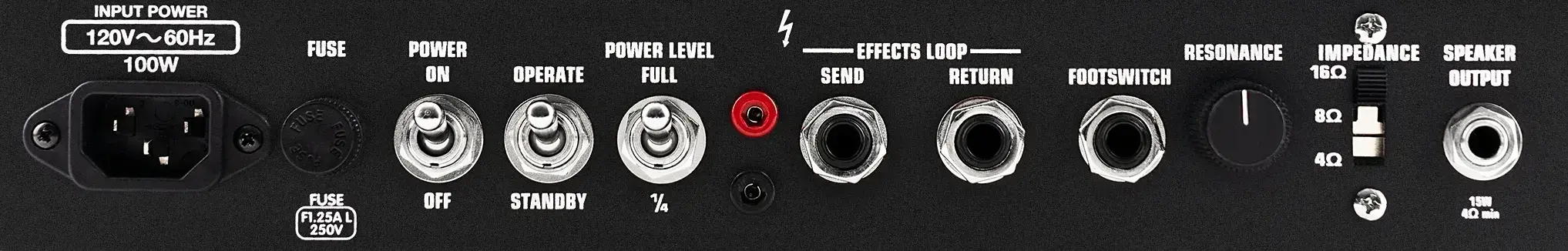

Effects Loop: 1/4" (Send/Return)
Inputs: One - 1/4"
Other Connections: Adjustable Bias Control Ports
Speaker Jack: Two - 1/4" Parallel
Rectifier: Solid State
Total Impedance: 4, 8, or 16 ohms
Power Cable: IEC
CONSTRUCTION
Grill Cloth/Material: Black Metal
Amplifier Covering: Black
Cabinet Material: Aluminum/Steel Chassis
TUBES
Preamp Tubes: 4 x JJ ECC83S (12AX7)
Power Tubes: 2 x JJ EL84
HARDWARE
Control Knobs: Black Chicken-Head Style Pointer
Handle: Vinyl with Metal Insert and Black End Caps
Front Panel: Black
MISCELLANEOUS
Other Features: LED Backlight (Green/Red) - On/Off Selectable
